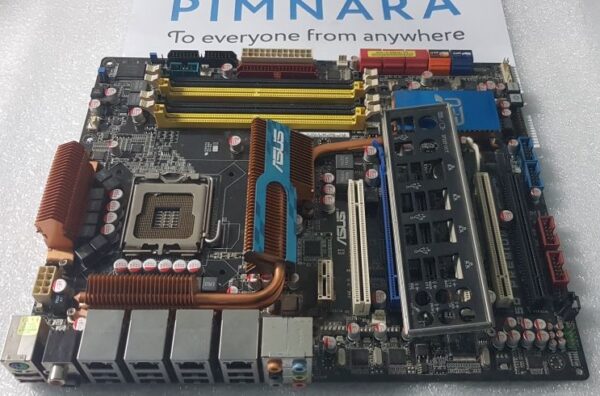

Материнская плата Asus P5Q Premium LGA775 DDR2

CPU
Intel Socket 775 for Intel® Core™2 Extreme/Core™2 Quad/ Core™2 Duo/Pentium® dual-core/Celeron® dual-core /Celeron® Processors
Compatible with Intel® 05B/05A/06 processors
Supports Intel® 45nm multi-core CPU
Chipset
P45 / ICH10R with Intel® Fast Memory Access(FMA) support
Front Side Bus
1600/1333/1066/800 MHz
Memory
4 x DIMM, 16 GB, DDR2 1200/1066/800/667 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
Please refer to www.asus.com or user manual for Memory QVL.
xx
Expansion Slots
1 x PCI Express 2.0 x16 slot at max. x16 link (blue)
1 x PCI Express 2.0 x16 slot at max. x8 link (white)
2 x PCI Express x16 slot at max. x4 link (black)
1 x PCIe x1
2 x PCI
CrossFire
Support ATI CrossFireX™ technology, up to Quad CrossFireX
Storage
Southbridge

6 xSATA 3 Gb/s ports 0,1,5,10 Intel® Matrix Storage Technology Support RAID
LAN
Quad Gigabit LAN controllers
Marvell 88E8056® Gigabit LAN controller featuring AI NET 2, Teaming, and Redundant
Audio
ADI® AD2000B 8-Channel High Definition Audio CODEC
–
